Family Designation: HFPR/L (full radius)

Utility double-ended full radius face machining inserts.

No depth penetration limit.

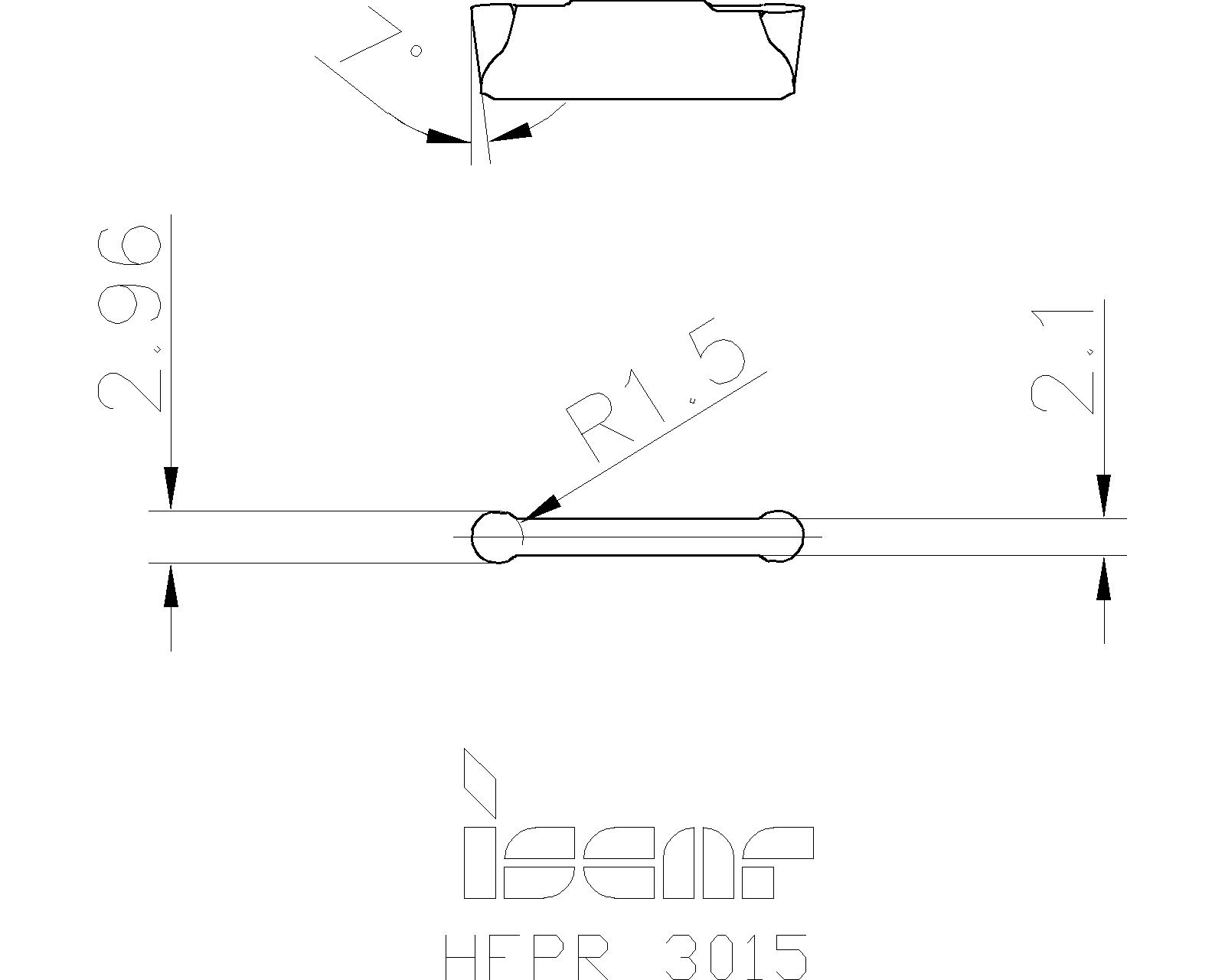

Item Designation: HFPR 3015

CW	RE	CWTOL	BW	DAXN	DAXX	ap (min)	ap (max)	fft (min)	fft (max)	ffg (min)	ffg (max)	HAND	CEDC	L	SC	AN	CBMD	CDX	COATP	CSP	DMIN	GRDMFG	IFS	INSL	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
3.00	1.50	0.050	2.10	25.6	51.5	0.00	1.50	0.12	0.20	0.08	0.20	R~	2~	0.00~	L~	7.0~	~	-~	~	0~	-~	IC20 ~	7~	19.00~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6290387		9

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3318156	IC806		1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3318156&cat=3318156&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3318156&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3318156&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200040	IC20	Alternative	1	1600	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200040&cat=6200040&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200040&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200040&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200068	IC354	Alternative	1	960	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200068&cat=6200068&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200068&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200068&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200216	IC9015	Alternative	3	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200216&cat=6200216&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200216&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200216&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200302	IC808	Alternative	1	2560	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200302&cat=6200302&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200302&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200302&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200357	IC830	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200357&cat=6200357&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200357&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200357&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200372	IC8250	Alternative	1	1920	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200372&cat=6200372&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200372&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200372&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200387	IC5010	Alternative	3	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200387&cat=6200387&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200387&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200387&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6290387	IC428	Alternative	3	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6290387&cat=6290387&itemDesc=HFPR 3015"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6290387&itemDesc=HFPR 3015"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6290387&itemDesc=HFPR 3015"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
