Family Designation: GRIP

Double-ended inserts, for turning & grooving in external, internal and face applications.

No depth penetration limit

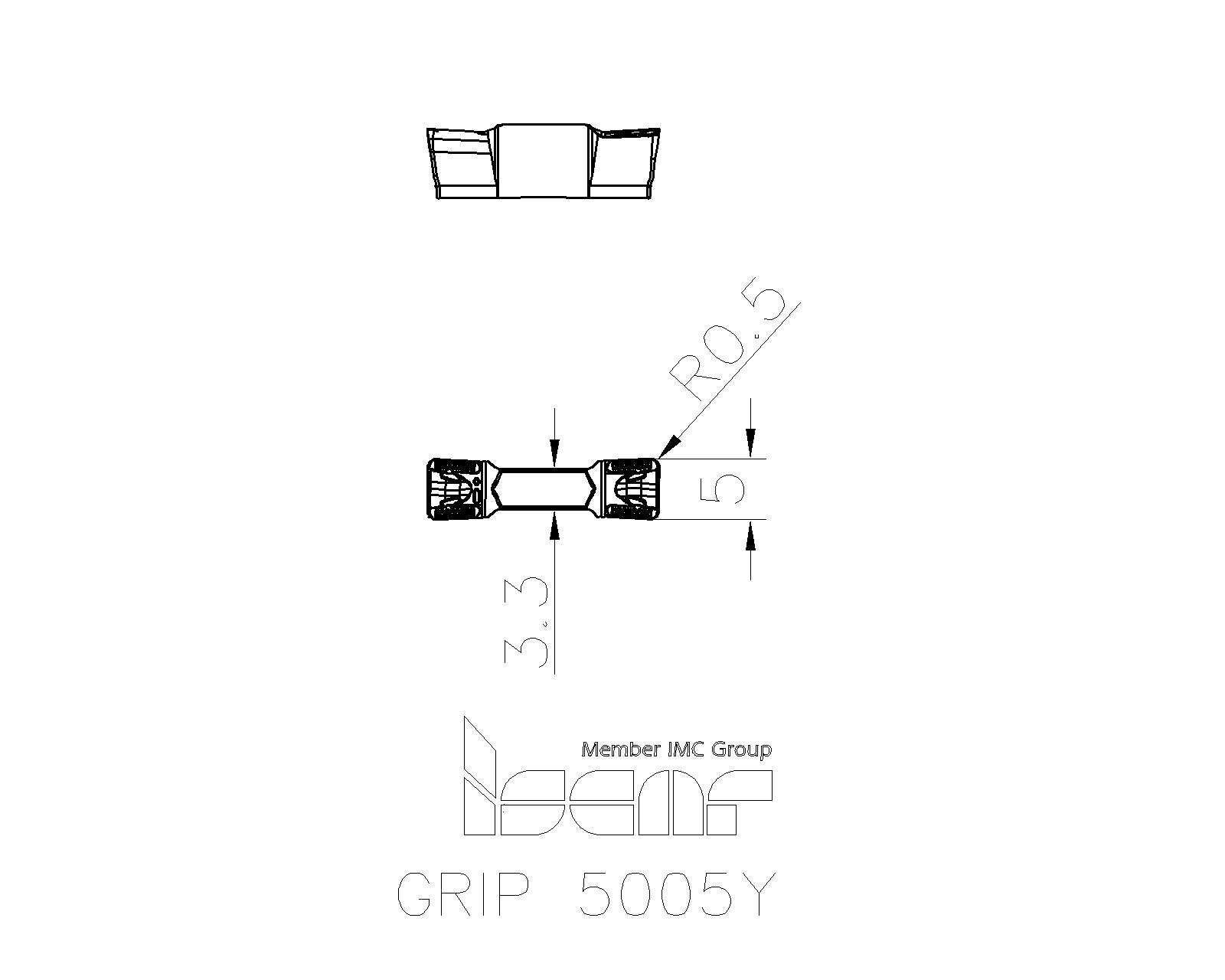

Item Designation: GRIP 5005Y

CW	CWTOL	RE	RETOL	INSL	BW	CICT	CBMD	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	DAXN	CEDC	SC	AN	CDX	COATP	CSP	DMIN	GRDMFG	HAND	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	0.050	0.50	0.050	19.00	3.30	2~	~	0.60	3.00	0.20	0.30	0.11	0.20	21.7~	2~	L~	-~	-~	~	0~	-~	IC08 ~	N~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6291287		11

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3341411	IC806		1	230	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3341411&cat=3341411&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3341411&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3341411&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
3363737	IC804		3	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3363737&cat=3363737&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3363737&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3363737&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200087	IC08	Alternative	1	90	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200087&cat=6200087&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200087&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200087&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200088	IC354	Alternative	1	50	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200088&cat=6200088&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200088&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200088&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200111	IC418	Alternative	1	87	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200111&cat=6200111&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200111&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200111&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200327	IC808	Alternative	1	489	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200327&cat=6200327&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200327&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200327&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200353	IC8250		1	310	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200353&cat=6200353&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200353&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200353&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200423	IC5010		1	110	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200423&cat=6200423&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200423&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200423&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200439	IC830	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200439&cat=6200439&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200439&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200439&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200458	IC807	Alternative	1	100	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200458&cat=6200458&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200458&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200458&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6291287	IC908	Alternative	1	47680	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6291287&cat=6291287&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6291287&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6291287&itemDesc=GRIP 5005Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
