Family Designation: GIPA (full radius W=3-6)

Precision-ground double-ended inserts, polished to avoid built-up edge, used for external machining of aluminum at medium-to-high feeds.

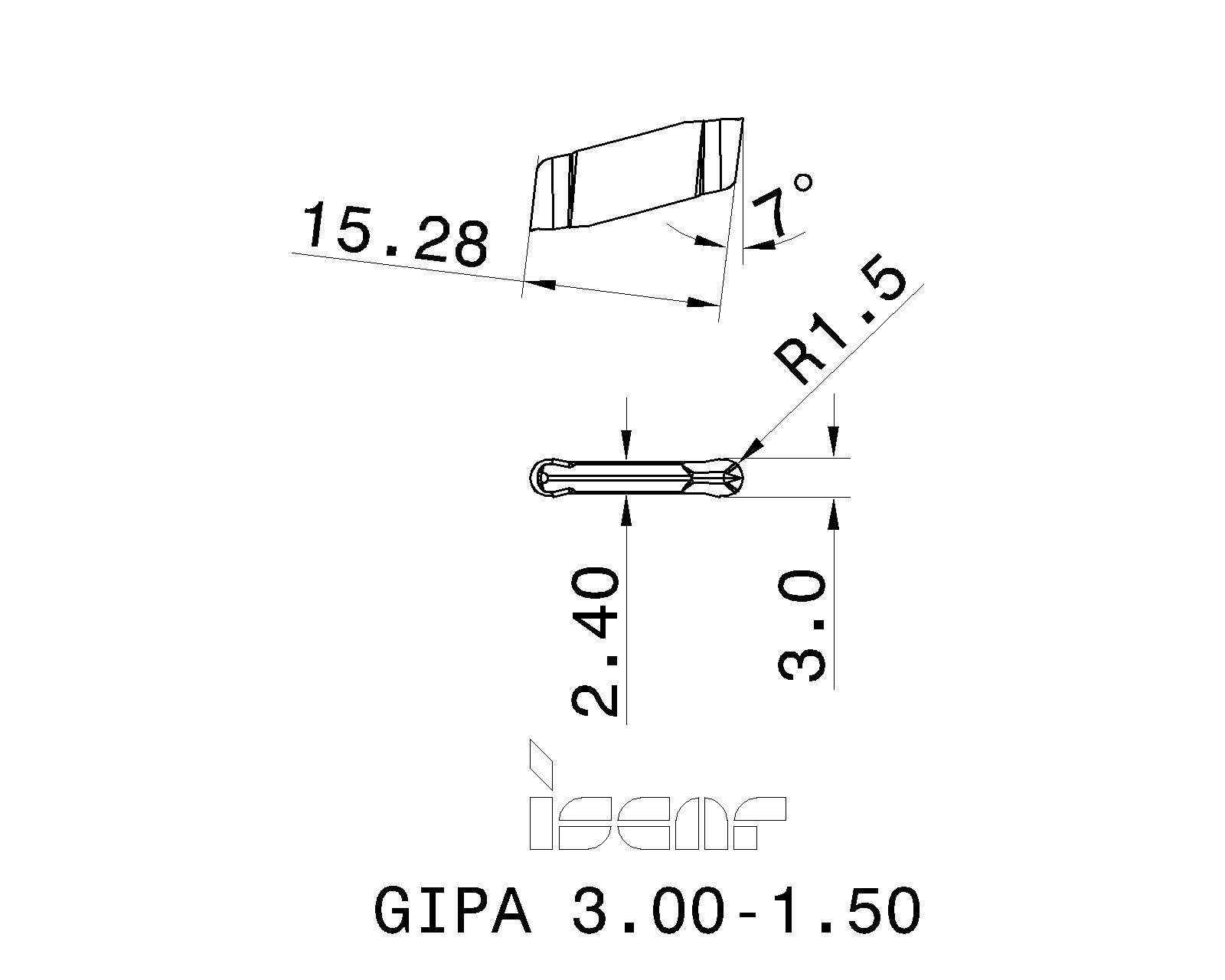

Item Designation: GIPA 3.00-1.50

CW	RE	CWTOL	RETOL	BW	DAXN	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	L	CBMD	CDX	CEDC	SC	AN	COATP	CSP	DMIN	GRDMFG	HAND	IFS	INSL	S	S1	WEP	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
3.00	1.50	0.020	0.050	2.40	160.0	0.00	1.50	0.15	0.30	0.08	0.16	15.30~	~	13.00~	2~	L~	7.0~	~	0~	-~	IC20 ~	N~	7~	15.00~	-~	-~	0~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	Uncoated ~	6403197		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	GIFUT5	GTC	Stock Availability US EU E. Asia	STP	P21	StockPerUser
6403197	IC20			1	640			0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6403197&cat=6403197&itemDesc=GIPA 3.00-1.50"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6403197&itemDesc=GIPA 3.00-1.50"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6403197&itemDesc=GIPA 3.00-1.50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10
