H690 TNKX 1606 : Triangular inserts with 6 helical cutting edges for 90° general use applications.(-)Triangular Inserts with 6 Helical Cutting Edges for 90° Shoulders(+)

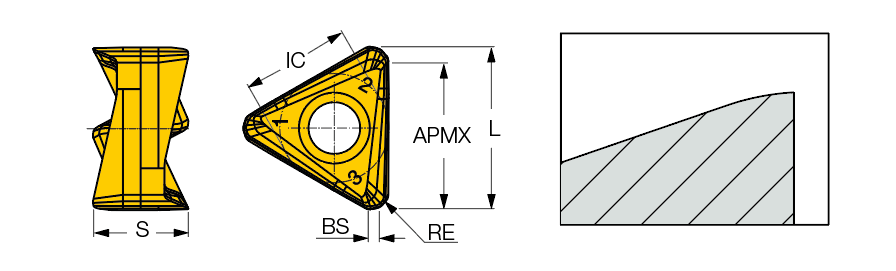

Designation		GIFUT5	L	APMX	IC	S	RE	BS	fz (min)	fz (max)	ap (min)	ap (max)	Utility	CEDC	Mod	ESP	Pocket	SC	SF		AN	CBMD	CECC	ClssID	CNC	D1	EPSR	GRDMFG	GTC	IFS	IH	IIC	ISCTMP	ISYC	KRINS	LE	LOGH	LOGL	LOGW	MIID	NIS	SSC	UST	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
H690 TNKX 1606PNTR-CS		0	17.50	13.50	12.00	10.00	0.80	0.70	0.15	0.30	1.20	13.50	U~	6~	ML100~	U70~	H690 TN..16~	T~	M8~	0.01~	0.0~	-~	T~	71DD68D73218C~	3~	~	60.0~	IC830 ~	INSCMIL_$T~	3~	R~	IS$$338221813196176~	GEMLI01022010~	201-01~	~	13.50~	0.00~	0.00~	0.00~	~	2~	16~	C~	0~	Steel~	Stainless Steel~			Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5667850	The maximum feed per tooth for chip splitting effect is up to 0.22 mm/t	1	IC830
H690 TNKX 160610PNTR		0	17.50	13.50	12.00	10.00	1.00	0.70	0.15	0.30	1.40	13.50	~	6~	ML100~	U70~	H690 TN..16~	T~	M8~	0.00~	0.0~	-~	T~	71DD68D73218C~	3~	~	60.0~	IC5100~	INSCMIL_$T~	3~	R~	IS$$338221813196176~	GEMLI01022010~	201-01~	~	13.50~	0.00~	0.00~	0.00~	~	2~	16~	C~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrN+TiN ~	5668390		6	IC845 IC830 IC808 IC810 IC5600 IC5100
