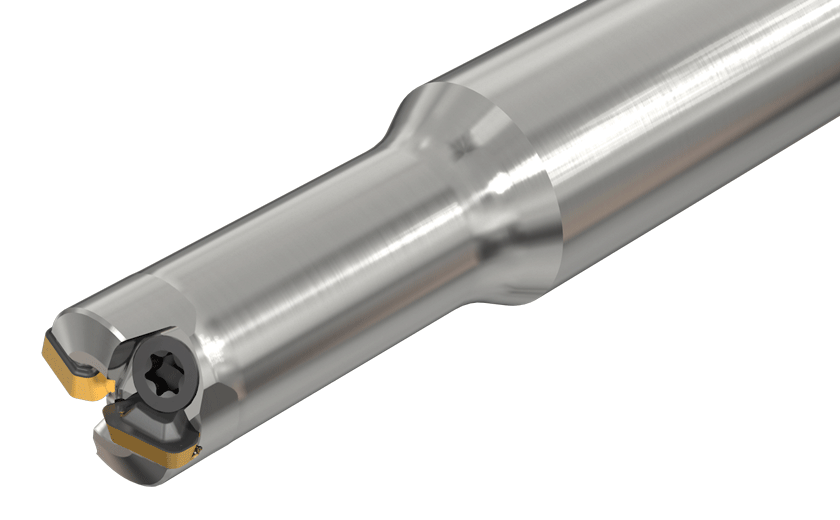

FFT3 EFM-02 : Small diameter endmills carrying single sided triangular inserts for fast feed milling.(-)Small Diameter Endmills Carrying Single-Sided Triangular Inserts for Fast Feed Milling(+)

Designation	DCX	DC	APMX	AE	CICT	Rg	LU	LH	OAL	DCONMS	Shank	RMPX°	MDN	MDX	IC	Mod	Pocket	D Inner	MIID		KAPR	CNSC	CXSC	ISYC	ISCTMP	MINI	ClssID	GTC		FF/RN/P	BMC	CCTMS	CCFMS	CCMS	PD	BD	CSP	CUBPMS	CZCMS	DF	HAND	IIC	LF	LTA	RPMX	TCDCONMS	UST	GICAT
FFT3 EFM D08-2-060-C10-02	8.00	2.20	0.60	2.9	2	1.10~	17.00	20.0	60.00	10.00	C	10.8	10.20	15.00	2.00~	~	FFT3 TX02~	~	FFT3 TXMT 0201205T	0.5~	14.0~	~	~	307-01~	~	All~	71E01A05D27A8~	~	0.03	FF~	S~	ZYL~	01~	ZYL01G1000h$06~	XF~	~	1~	G~	1000~	~	R~	IS$$66726585814882~	60.00~	20.00~	~	h6~	m~	3334291
FFT3 EFM D08-2-080-C12-02	8.00	2.20	0.60	2.9	2	1.10~	26.00	30.0	80.00	12.00	C	10.8	10.20	15.00	2.00~	~	FFT3 TX02~	~	FFT3 TXMT 0201205T	0.5~	14.0~	~	~	307-01~	~	All~	71E01A05D27A8~	~	0.05	FF~	S~	ZYL~	01~	ZYL01G1200h$06~	XF~	~	1~	G~	1200~	~	R~	IS$$66726585814882~	80.00~	35.00~	~	h6~	m~	3326801
FFT3 EFM D10-3-070-C10-02	10.00	4.20	0.60	2.9	3	1.10~	19.50	20.0	70.00	10.00	C	4.7	14.20	19.00	2.00~	~	FFT3 TX02~	~	FFT3 TXMT 0201205T	0.5~	14.0~	~	~	307-01~	~	All~	71E01A05D27A8~	~	0.04	FF~	S~	ZYL~	01~	ZYL01G1000h$06~	XF~	~	1~	G~	1000~	~	R~	IS$$66726585814882~	70.00~	30.00~	~	h6~	m~	3346808
FFT3 EFM D10-3-090-C12-02	10.00	4.20	0.60	2.9	3	1.10~	30.00	33.0	90.00	12.00	C	4.7	14.20	19.00	2.00~	~	FFT3 TX02~	~	FFT3 TXMT 0201205T	0.5~	14.0~	~	~	307-01~	~	All~	71E01A05D27A8~	~	0.06	FF~	S~	ZYL~	01~	ZYL01G1200h$06~	XF~	~	1~	G~	1200~	~	R~	IS$$66726585814882~	90.00~	45.00~	~	h6~	m~	3355763

Radius for programming 1.1 mm
To generate a straight surface without cusps, the width of cut must not exceed DC
