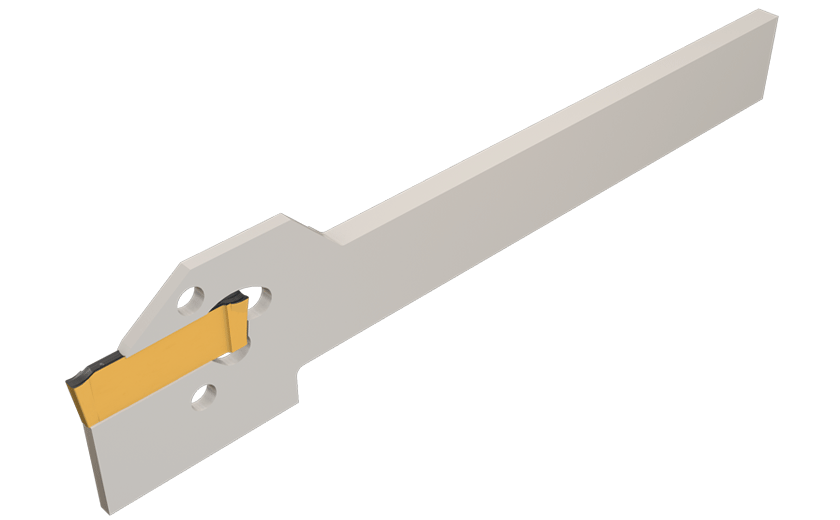

DGFS : Blades for multi-spindle machines - replacement for HSS and brazed tools, using double-ended inserts.(-)Blades for Multi-Spindle Machines, Replacement for HSS and Brazed Tools(+)

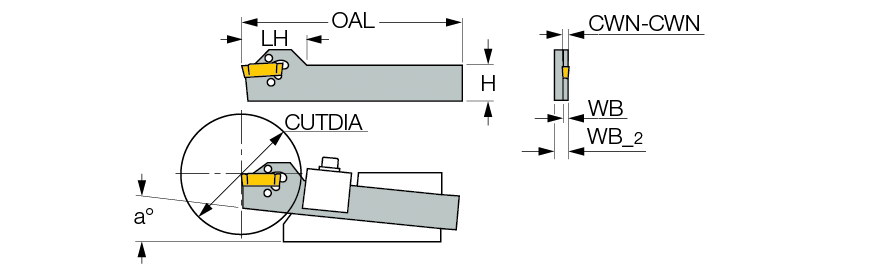

Designation	B1	CWN	CWX	CUTDIA	WB	WB_2	OAL	LH	a°	HAND	APMX	CSP	Tool typ	GICAT	GIREM
DGFS 0-12-2	12.7	1.90	2.50	32.0	1.60	3.2	110.00	32.0	0	N~	2.50~	~	BLADE~	2301406	Toolholder assembly X18-1,46,47-WT,160-CL,354-CL,701-ACL,702,702-CL,703,703-CL,704,704-CL,6921,6925
DGFS 0-17-2	17.4	1.90	2.50	35.0	1.60	3.2	110.00	32.0	0	N~	2.50~	~	BLADE~	2394326	Toolholder assembly E-7,47,102-CL,103-CL,161-A-CL,162-A-CL
DGFS 0-17-3	17.4	3.00	3.18	60.0	2.40	3.2	110.00	32.0	0	N~	3.18~	~	BLADE~	2394336	Toolholder assembly E-7,47,102-CL,103-CL,161-A-CL,162-A-CL
DGFS 5-17-2	17.4	1.90	2.50	35.0	1.60	3.2	110.00	32.0	5	N~	2.50~	~	BLADE~	2398467	Toolholder assembly 226,226-CL,275,275-CL,276-CL,361-CL,431,630,707-A,707-A-CL
DGFS 5-17-3	17.4	3.00	3.18	60.0	2.40	3.2	110.00	32.0	5	N~	3.18~	~	BLADE~	2398457	Toolholder assembly 226,226-CL,275,275-CL,276-CL,361-CL,431,630,707-A,707-A-CL
DGFS 5-17-4	17.4	4.00	4.00	60.0	3.20	3.2	110.00	32.0	5	N~	4.00~	~	BLADE~	2301409	Toolholder assembly 226,226-CL,275,275-CL,276-CL,361-CL,431,630,707-A,707-A-CL
DGFS 5-22-2	22.2	1.90	2.50	50.0	1.60	3.2	150.00	32.0	5	N~	2.50~	~	BLADE~	2301410	Toolholder assembly 100-CL,274,277,277-CL,274-CL,370,383-CL, 6722,6754,6755,6854,6855,6922,51,51-CL,353-CL,167,370-CL
DGFS 5-22-3	22.2	3.00	3.18	75.0	2.40	3.2	150.00	32.0	5	N~	3.18~	~	BLADE~	2398437	Toolholder assembly 100-CL,274,277,277-CL,274-CL,370,383-CL, 6722,6754,6755,6854,6855,51,51-CL,353-CL,167,370-CL
DGFS 5-22-4	22.2	4.00	4.00	80.0	3.20	3.2	150.00	32.0	5	N~	4.00~	~	BLADE~	2398637	Toolholder assembly 100-CL,274,277,277-CL,274-CL,370,383-CL, 6722,6754,6755,6854,6855,51,51-CL,353-CL,167,370-CL
DGFS 5-24-3	23.8	3.00	3.18	80.0	2.40	3.2	150.00	32.0	5	N~	3.18~	~	BLADE~	2398647
DGFS 5-28-2	28.5	1.90	2.50	65.0	1.60	3.2	150.00	32.0	5	N~	2.50~	~	BLADE~	2301412	Toolholder assembly 278,278-CL,279,279-CL,280,280-CL,281,281-CL,375-CL,359-CL,372-CL,A6120,52,52-CL
DGFS 5-28-4	28.5	4.00	4.00	100.0	3.20	3.2	150.00	32.0	5	N~	4.00~	~	BLADE~	2301414	Toolholder assembly 278,278-CL,279,279-CL,280,280-CL,281,281-CL,375-CL,359-CL,372-CL,A6120,52,52-CL

DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified -click on "More Info".
