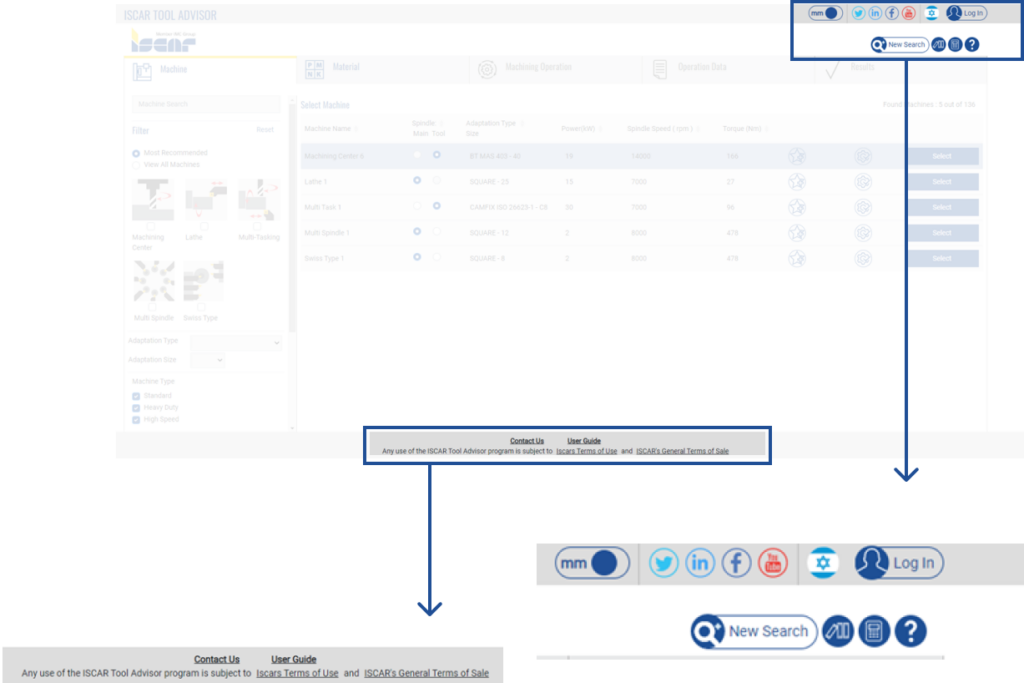

NEOITA Settings and Navigation

Place your mouse over each number feature to see the explanation

1

Measurement Unit Selection(Metric/Inch)

2

Country/Language Selection

3

Login for Custom Features

4

Create New Search

5

E-Catalog

6

Calculators Menu

7

Help Menu

8

Contact NEOITA Support

9

Detailed step by step user guide

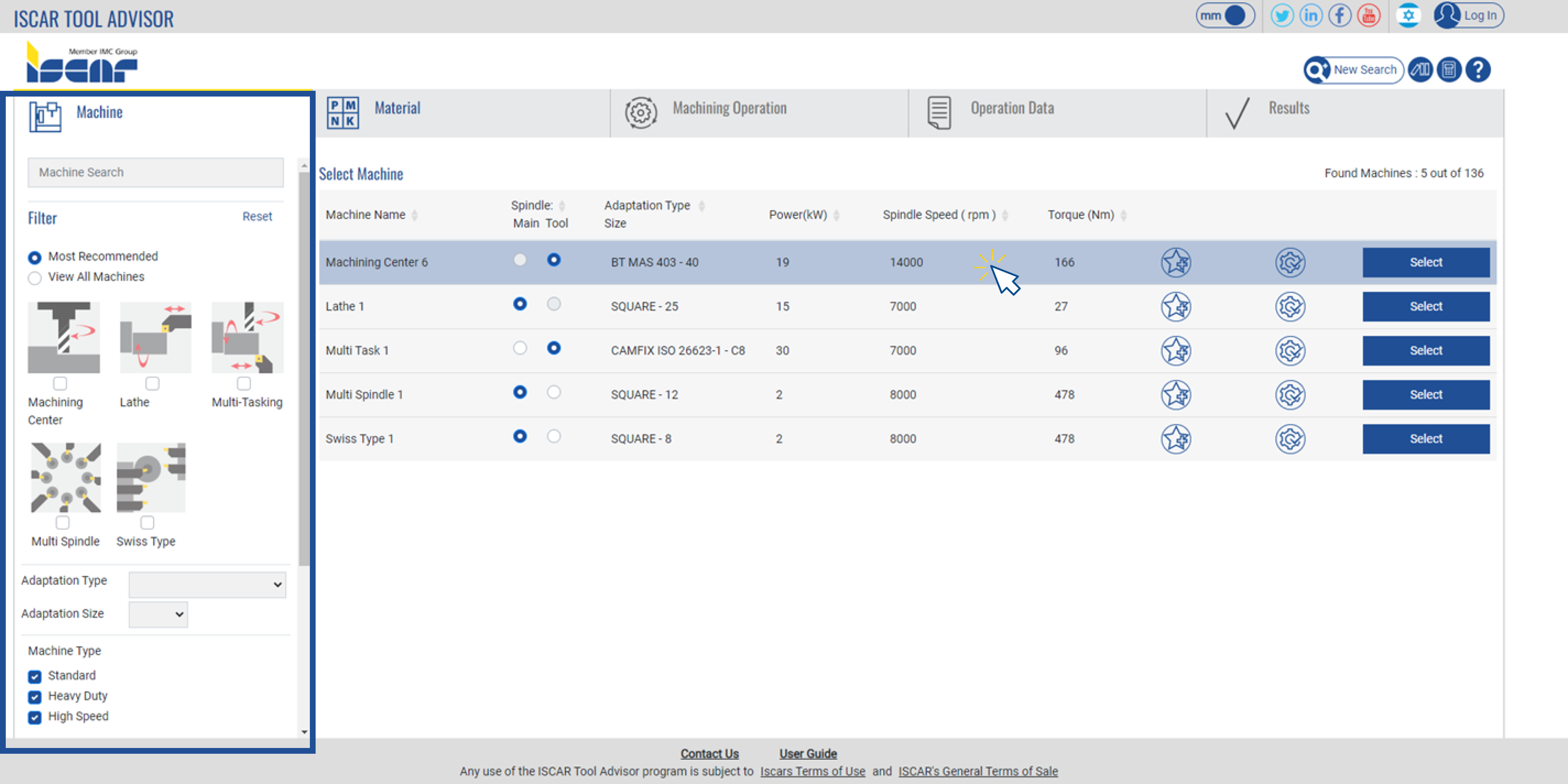

NEOITA Machine Page

1

Filter Panel- select machine specification (type, adaptation, adaptation size and more)

2

Choose the main or tool spindle if applicable

3

Click on the row to edit machine specifications

4

Add the machine to your favorites
(logging in is required)

5

Proceed to the materials
tab with the current parameters

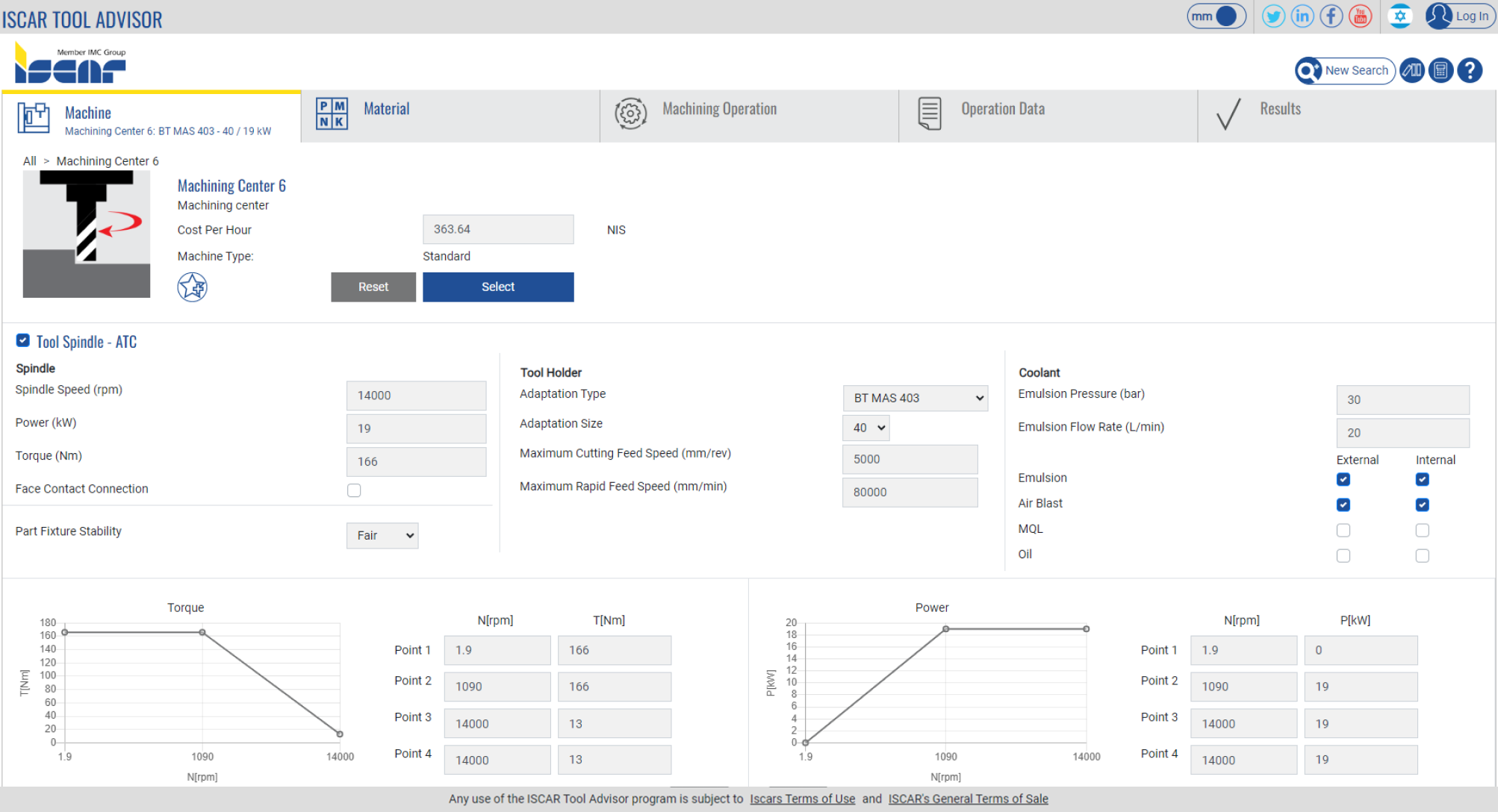

NEOITA Machine Page- Machine Parameters

Modify the machine cost per hour, spindle, Power/torque graph, tool holder and coolant parameters.
In order to save the parameters, first add the machine to the “My Machines” list by clicking on the icon
Then, the save icon will appear and clicking on it will save the parameters.
Click the “Select” button to confirm and proceed to the material tab.

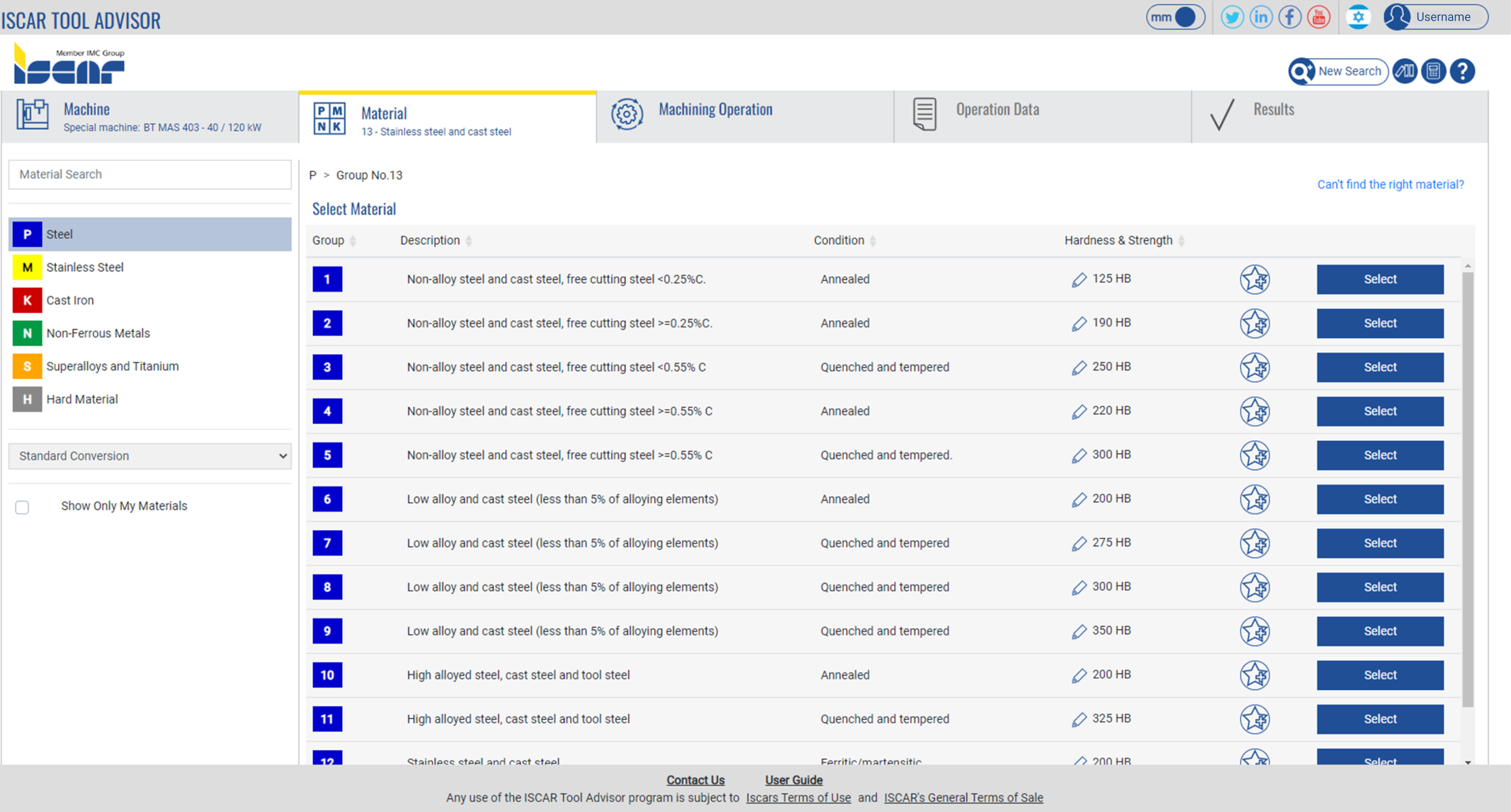

NEOITA Materials Page

Select required material from the list- toggle between ISO P/M/K/N/S/H groups and select the material by clicking on “Select”.
The materials can be filtered by standard type, material group or by the material search filed.

Materials with selected hardness can be saved with the “Add to My Materials” button , Please note that logging in is required.

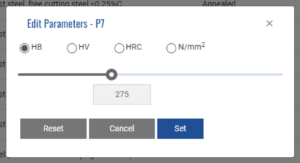

By clicking on the pencil icon , an editing pop-up will appear with the option to edit the material hardness and strength

NEOITA Materials Page

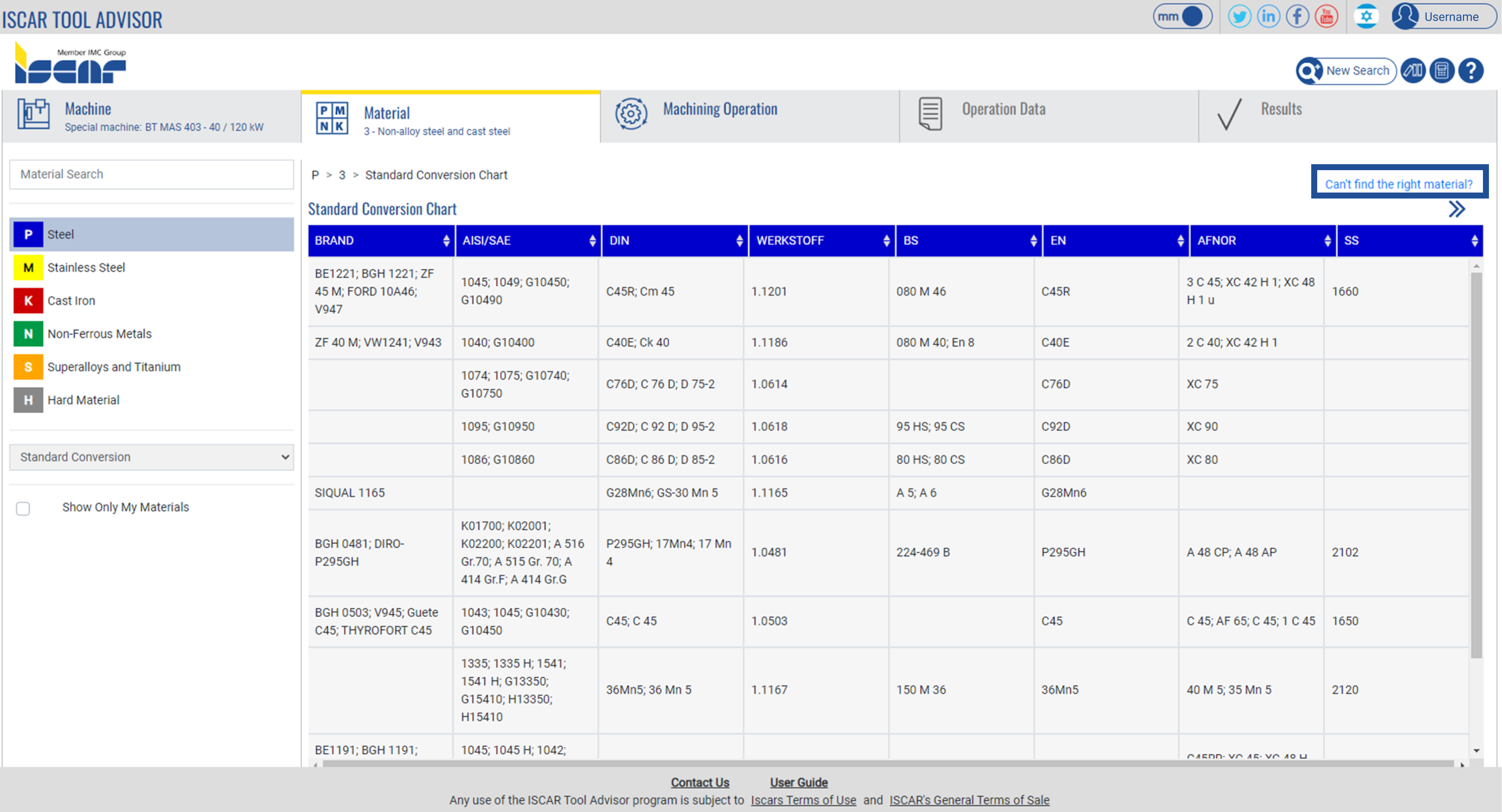

After clicking on the row, the standard conversion chart will open and the specific material can be chosen

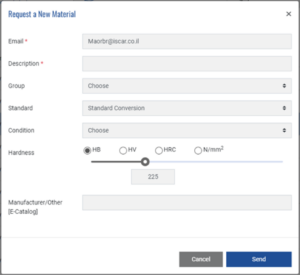

Additional materials can be added to NEOITA database via “Can’t find the right material” option.

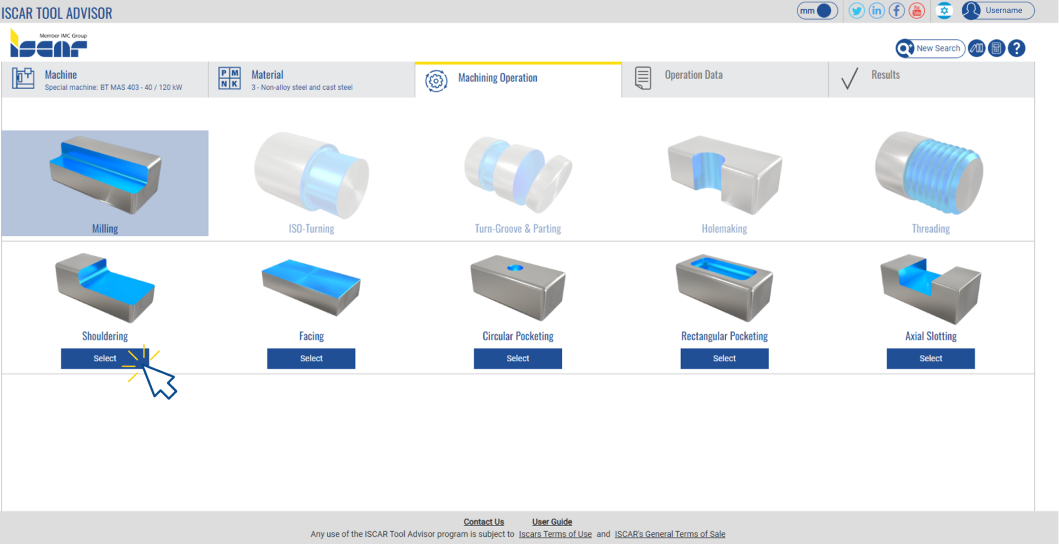

NEOITA Machining Operation Page

Select the required application type.
Please note: Application availability is based on the machine type and adaptation

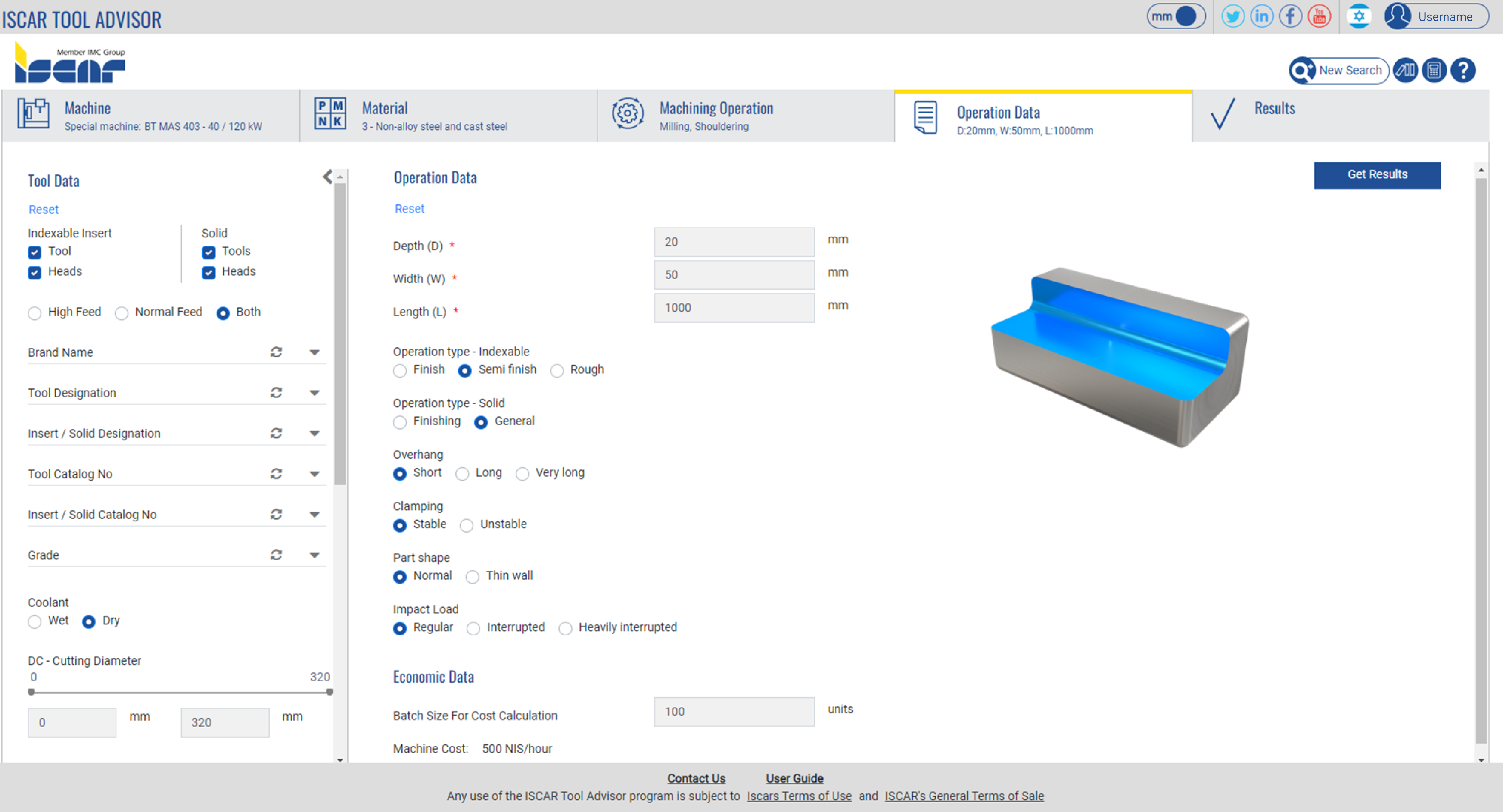

NEOITA Operation Data Page

1

Filter request solution by various criteria (indexable insert, solid tool, brand name, catalog number, tool diameter,
no. of flutes, etc.)

2

Select application geometric features, machining type and production batch size

3

Get Results Button

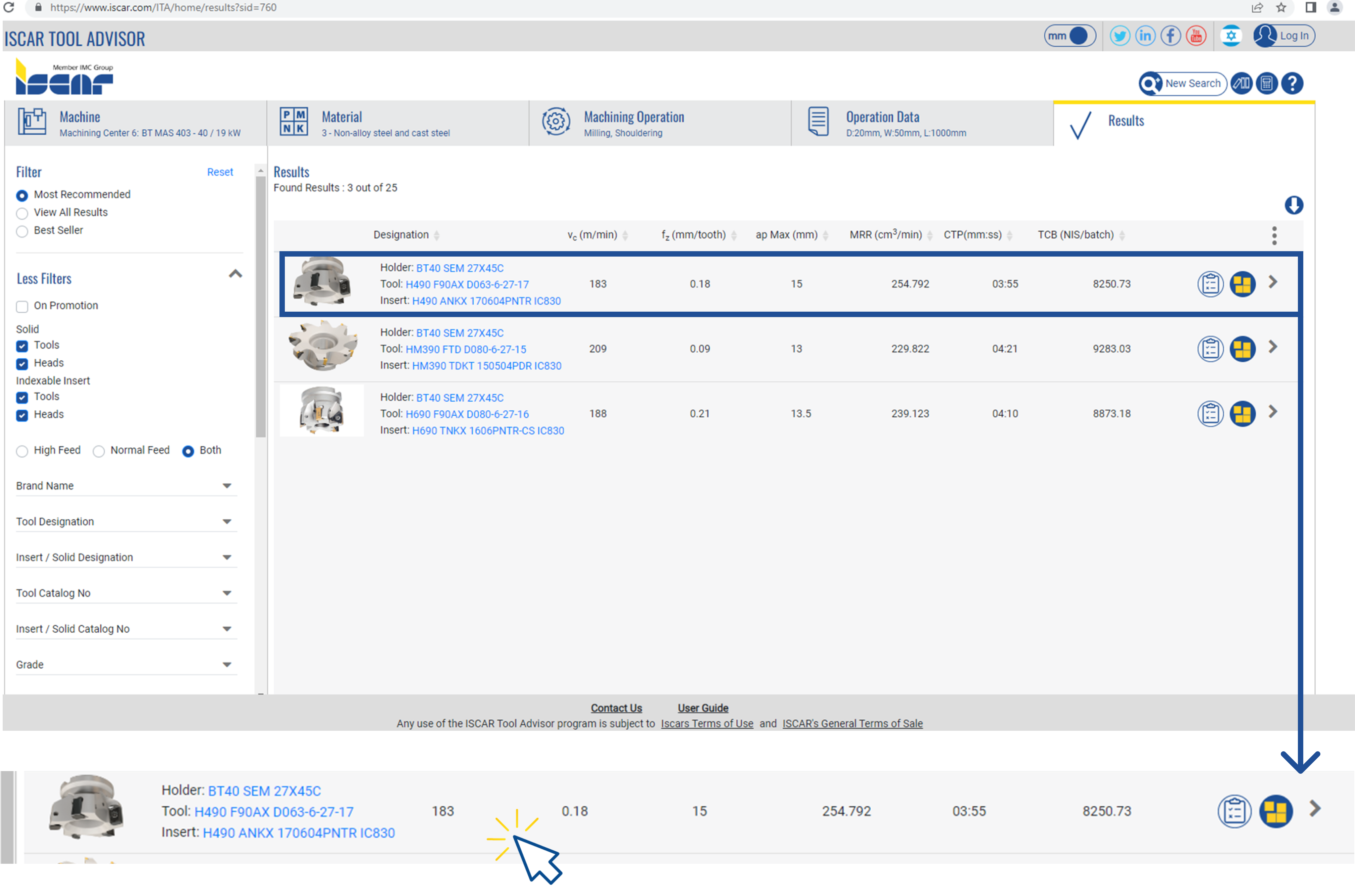

NEOITA Results Page

1

Filter Results-
Most Recommended - top 3 results
View All Results Available
Best Seller - sort all results by global best sellers

2

Advanced filters by different criteria

3

Results- shows applications
results that can be filtered
by different parameters (MRR, speed feed, etc.)

4

Select parameters from the list to compare each solution

5

Download results in PDF format

6

Links to the products on ISCAR E-Catalog

7

More information

7

More information

8

Stock availability-
review the selected
solution stock on
ISCAR’s main
logistic centers

9
Build Assembly- create a 2D/3D assembly via Iscar’s E-Catalog assembly feature

NEOITA Solution Result Information

1

Create Assembly - Create a 2D/3D assembly on ISCAR's eCatalog

2

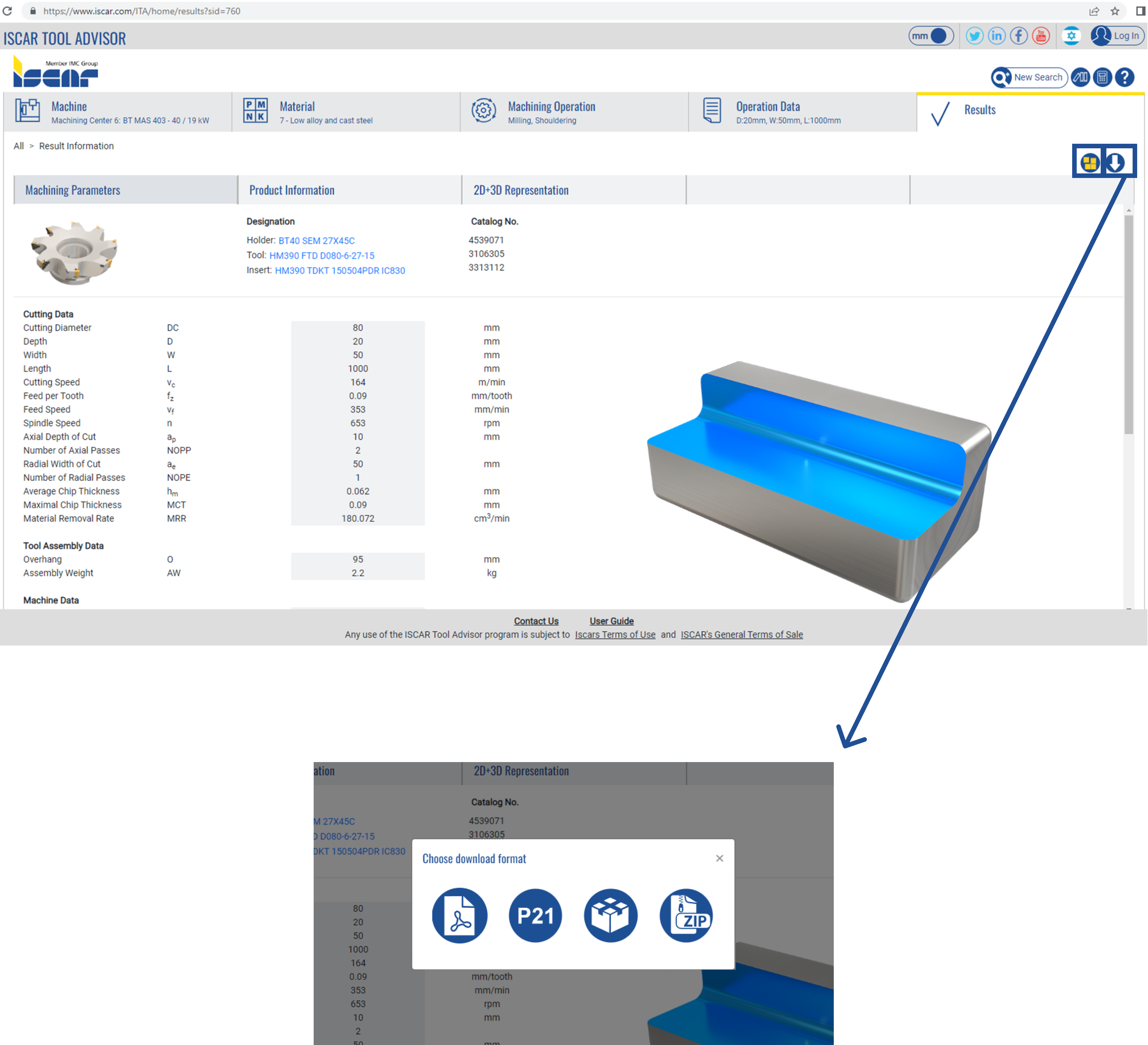

Download Results-
Export the results as a
PDF file/ P21/ File Package/ ZIP

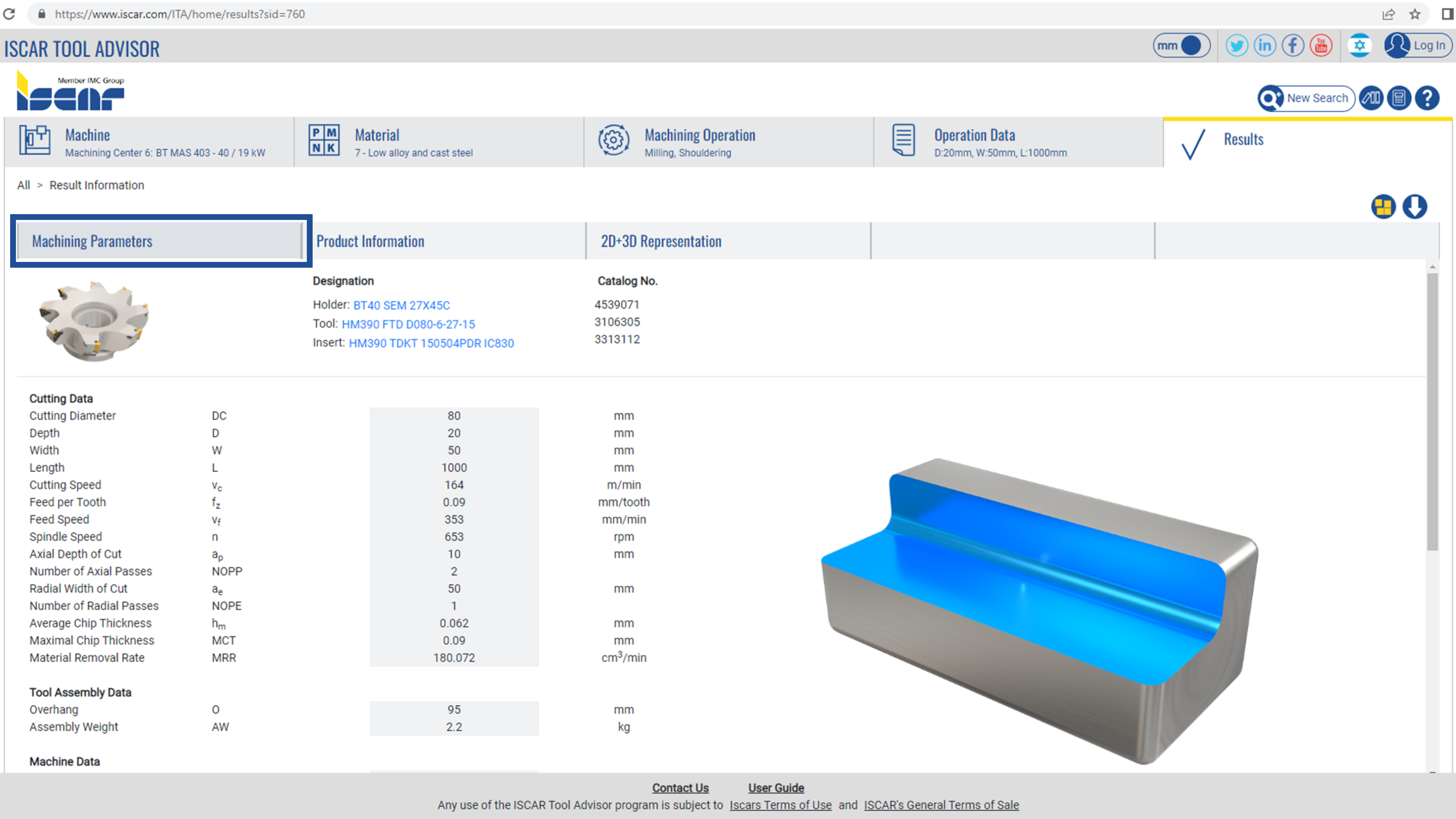

Machining Parameters– displays the machining parameters:
Cutting Data: Summarized machining strategy.
Tool Assembly Data: Overhang and weight information.
Machining Data: Review different machining forces.
Time and Cost: Summarized implementation cost and projected tool life.

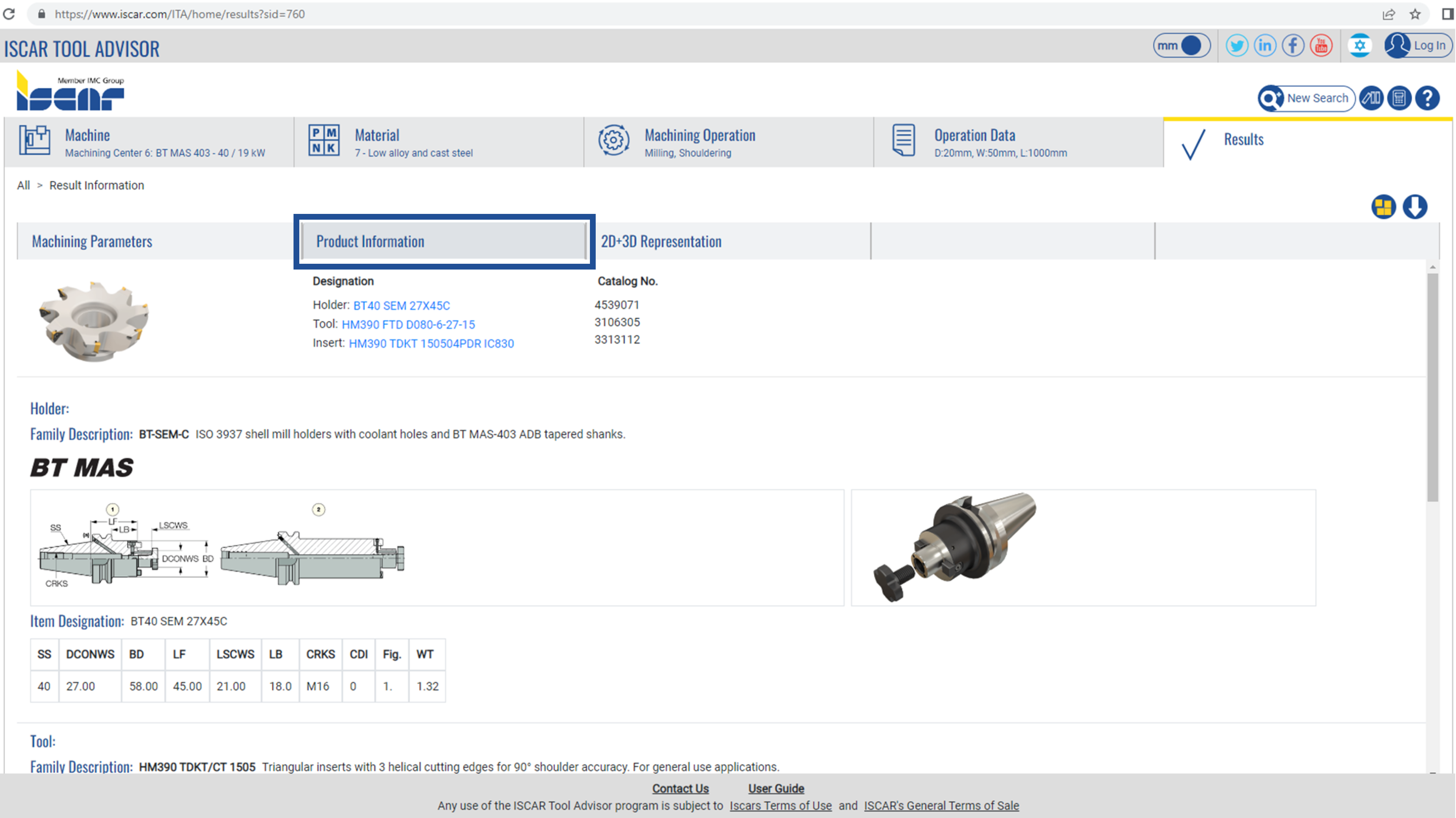

Product Information– Displays the product information according to ISCAR’s e-Catalog.

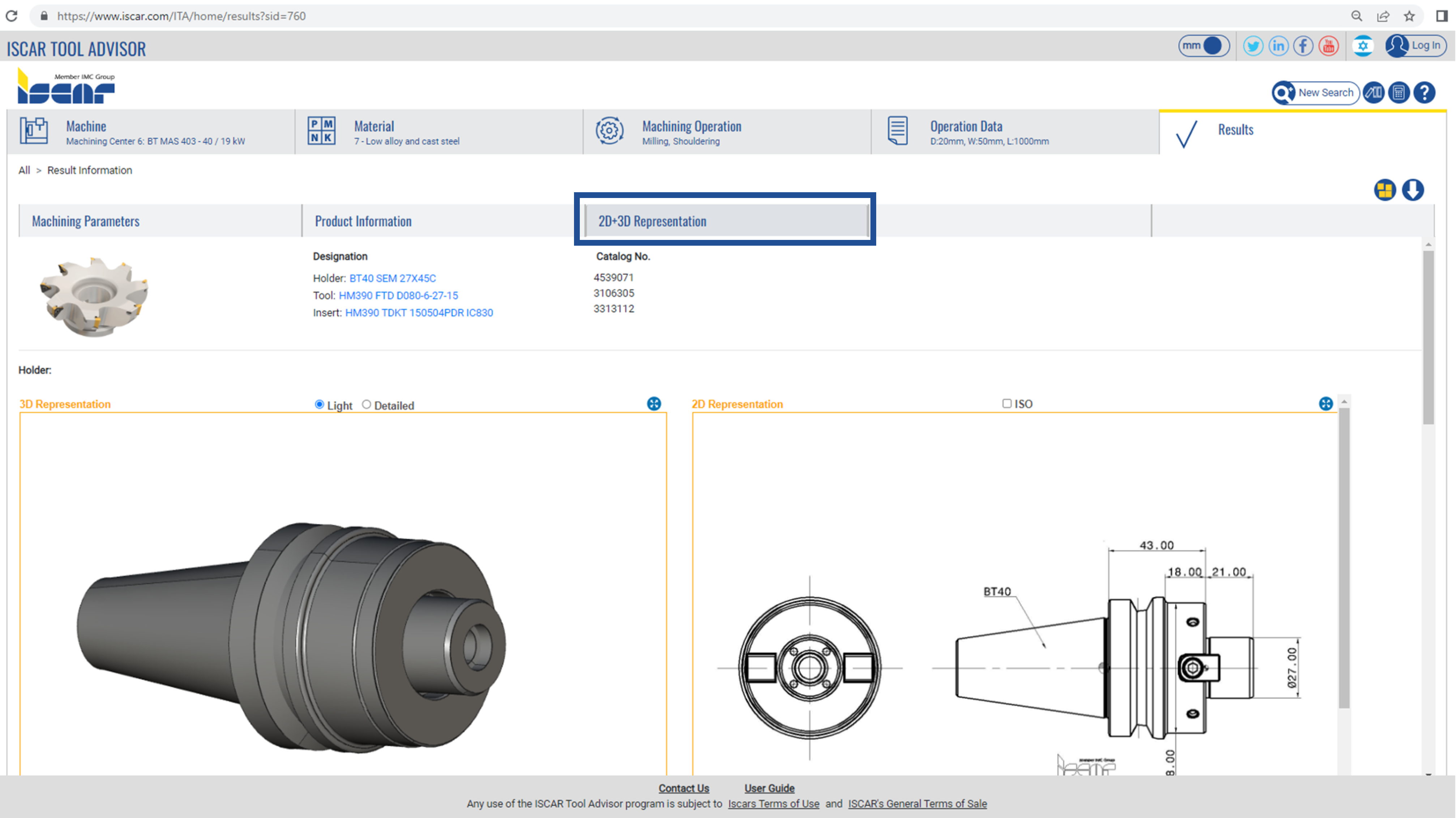

2D+3D Representation– Displays the product 2D drawing and 3D module according to ISCAR’s e-catalog.
